RFS-14E
-
Romeroca
-
25~35M/Min
-
21KW
SPC Flooring Saw Cutting Machine

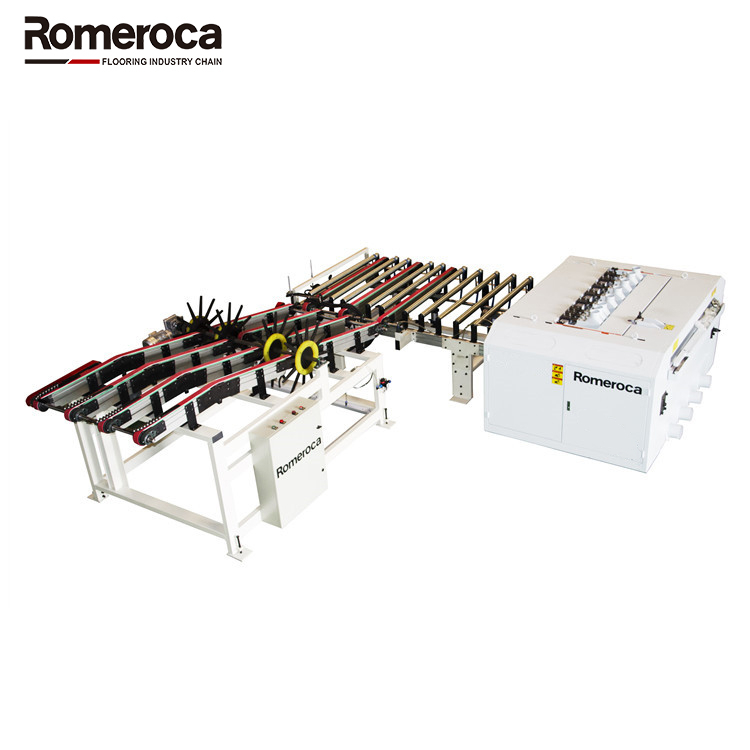

Romeroca SPC Flooring Saw Cutting Machine is a multi-blade rip saw cutting machine designed to cut large SPC flooring boards into accurate flooring planks. The RFS-14E model supports automatic cutting, high precision, flat edges and stable plank size control, making it suitable for SPC flooring, rigid core vinyl flooring and related floor board production lines.
In an SPC flooring production line, the saw cutting machine is normally installed after extrusion, cooling and UV coating. It cuts wide SPC boards into smaller planks before click slotting. Accurate cutting helps reduce edge chipping, improve downstream profiling stability and ensure better finished flooring dimensions.
What Is an SPC Flooring Saw Cutting Machine?
An SPC flooring saw cutting machine, also called a multi-blade rip saw or flooring board cutting machine, is used to cut wide SPC boards into flooring plank widths. Multiple saw blades work at the same time to improve production efficiency and maintain consistent plank size.
For flooring manufacturers, the cutting stage directly affects plank straightness, edge flatness, material utilization and the accuracy of the later click slotting process. A stable saw cutting system helps reduce chipping, board bounce, dust accumulation and dimensional deviation.
SPC Flooring Saw Cutting Machine Specifications
The following specifications are organized from the original Romeroca product data. They help flooring factories confirm the cutting width, board thickness, spindle size, working speed, power configuration, roller distance and dust control structure before selecting a saw cutting machine.
| Parameter | Specification |
|---|---|
| Model | RFS-14E |
| Working Width | Max 1300 mm |
| Working Thickness | 4–20 mm |
| Spindle | φ80 mm, Chrome |
| Power | 18.5 kW |
| Roller | Rubber Rollers |
| Dust Control | Internal panel dust clean, independent blades dust clean |
| Cutting Mechanism | Saw blade cutting anti-bounce compression device |
| Max Distance for Rollers | 482 mm |
| Min Distance for Rollers | 292 mm |
| Working Speed | 25–35 m/min |
| Electrical Control | 380V / 50Hz, Control Voltage: 24V DC |
Key Features of Romeroca Floor Saw Cutting Machine
Automatically cuts large SPC boards into precise flooring planks for downstream click slotting.
Supports maximum working width of 1300 mm and board thickness of 4–20 mm.
25–35 m/min working speed helps improve output for industrial SPC flooring production.
Multi-blade rip saw structure improves cutting efficiency and plank size consistency.
Saw blade cutting anti-bounce compression device helps maintain stable cutting and reduce chipping.
Rubber rollers support smooth board feeding and reduce surface damage during cutting.
Internal panel dust cleaning and independent blade dust cleaning help keep the cutting area cleaner.
PLC computer control system supports easier operation and production management.
High-precision cutting helps create straight cuts, flat edges and better preparation for slotting.
How the SPC Flooring Cutting Process Works
| Process Step | Function | Production Benefit |
|---|---|---|
| Board Feeding | Feeds wide SPC boards into the multi-blade saw cutting area. | Improves feeding stability and reduces manual handling. |
| Compression and Anti-Bounce Control | Holds the board during saw blade cutting. | Reduces board vibration, edge chipping and cutting deviation. |
| Multi-Blade Cutting | Cuts wide SPC boards into multiple plank widths at one time. | Improves cutting efficiency and supports stable plank size control. |
| Dust Cleaning | Removes dust from internal panel area and independent blade positions. | Improves workshop cleanliness and protects cutting performance. |
| Plank Transfer | Transfers cut planks to slotting, inspection or stacking process. | Supports continuous production line flow. |
Why Accurate Saw Cutting Matters for SPC Flooring
SPC flooring boards must be cut into consistent plank widths before click slotting. If the cutting edge is not straight or if the board width varies, the later double end tenoner may produce unstable click profiles, edge chipping or installation gaps. Accurate saw cutting helps create a stable foundation for high-quality profiling and finished flooring assembly.
For factories producing different plank sizes, quick specification switching, stable board feeding, dust control and saw blade condition are important for reducing downtime and improving material yield. Romeroca can support saw cutting machine selection together with cutting, slotting, V-groove painting, IXPE/EVA laminating and packing equipment.
Electrical Partners for Cutting Systems
Reliable electrical components are important for saw blade control, board feeding, dust cleaning, safety protection and long-term factory operation. Romeroca supports customers with project-based electrical configuration and machine matching.
Certificates and Patents for Cutting Technology
For overseas SPC flooring factories, machine documentation, project experience, spare parts support and after-sales service are important when selecting a saw cutting machine supplier.
SPC Flooring Saw Cutting Machine Project Cases
Romeroca supports overseas flooring factory projects with machine selection, line layout, installation guidance, commissioning, operation training and spare parts supply. The following image shows saw cutting machine project installation and production support.
What Is SPC Flooring?
SPC stands for stone plastic composite or stone polymer composite. SPC flooring is a rigid core vinyl flooring product made mainly from natural limestone powder, polyvinyl chloride and stabilizers. It is waterproof, dimensionally stable, high density and suitable for residential and commercial flooring applications.
A typical SPC flooring structure includes UV coating, wear-resistant layer, PVC decor film, SPC core and optional IXPE/EVA underlay. After extrusion and surface treatment, large SPC boards must be cut into accurate planks before click slotting, edge treatment and packing.
Full Production Process of SPC Flooring with Precision Cutting
The saw cutting machine is normally used after extrusion and UV coating. It prepares accurate plank sizes for the next click slotting process. Romeroca can supply the cutting machine individually or as part of a complete SPC flooring production line.
1. Crushing and Milling
SPC production waste can be crushed and milled into powder for recycling into the raw material system after proper screening and quality control.
2. Mixing
PVC resin, calcium carbonate, stabilizer and additives are mixed uniformly in a high-speed mixer, then cooled to prevent agglomeration and discoloration before extrusion.
3. Extrusion
The mixed material is fed into the extruder, plasticized by twin-cone screws and formed into sheet shape through the T-die. Wear-resistant layer and color film are laminated by a four-roller or five-roller calendering unit.
4. UV Coating
A UV coating machine applies protective coating to improve dust resistance, scratch resistance, abrasion resistance and gloss uniformity.
5. Cutting
The RFS-14E multi-blade rip saw cutting machine cuts large SPC boards into precise planks, ensuring straight cuts, high precision and flat edges before slotting.
6. Click Slotting
The longitudinal and transverse double end tenoner processes plank edges into the required locking profile. Accurate cutting before slotting helps improve click quality and installation fit.
7. V-Groove Painting
Optional V-groove painting applies color to the plank edges to create a more natural and premium flooring appearance.
8. IXPE/EVA Underlay Lamination
Hot melt adhesive bonds IXPE or EVA underlay to the back of SPC flooring, improving sound insulation and walking comfort for higher-end flooring products.
9. Packing
Finished planks are inspected and packed with semi-automatic or fully automatic packing machines according to the factory automation level.
What Romeroca Offers for SPC Flooring Projects
Complete SPC Flooring Production Line
Romeroca can provide SPC flooring extruder, mixer, crushing and milling machine, UV coating machine, saw cutting machine, click slotting machine, V-groove painting machine, IXPE/EVA lamination machine and packing machine.
Raw Materials for Rigid Core Vinyl Flooring
Available SPC flooring materials include PVC SG5, stabilizer, ACR, CPE, PVC lubricant, PE wax, wear-resistant layer, PVC decor film, IXPE/EVA underlayment, UV paint and hot melt glue.
Spare Parts for SPC Flooring Manufacturing
Romeroca supplies PCD cutters, PCD saw blades, extruder moulds, surface rollers, screw and barrel, UV rollers, UV lamps, saw blades, rollers, dust cleaning parts and other spare parts for rigid core vinyl flooring production.
Testing Equipment for SPC Flooring Factories
Romeroca can support SPC flooring factories with drying ovens, tensile testers, wear testers, scratch testers, click strength testers, click projectors and related testing equipment for quality control.
Why Choose Romeroca as Your Saw Cutting Machine Supplier?
Romeroca is a professional sales and technology service company dedicated to the flooring industry. Headquartered in Changzhou, Jiangsu, China, Romeroca supports overseas flooring factories with production lines, flooring raw materials, spare parts and technical services.
15 years of flooring industry experience.
Headquarter in Changzhou, Jiangsu, China, with branches in Hong Kong and Vietnam.
Laminate flooring and PVC flooring products exported to customers in 82 countries.
One-stop support since 2015 for overseas flooring factories, including production line, raw materials and technical services.
Support for product consultancy, inspection, new product development and strategic purchasing analysis.
36 months of after-sales service and strategy support for partner factories.
After-Sales Support for Cutting Systems
12-month warranty on Romeroca machines, excluding standard wear parts.
36-month tracking service and prompt response within 24 hours.
Factory production process planning and machine layout design.
Technical guidance, operation training and production support.
Timely spare parts supply for saw blades, rollers, dust cleaning components and other cutting machine wear parts.
Integrated support from raw materials and machines to finished SPC flooring products.
Frequently Asked Questions About SPC Flooring Saw Cutting Machines
What is an SPC flooring saw cutting machine?
An SPC flooring saw cutting machine is used to cut large SPC boards into flooring planks. It normally works after extrusion and UV coating, and before click slotting in a complete SPC flooring production line.
What is the model of Romeroca saw cutting machine?
The listed model is RFS-14E. It is a multi-blade rip saw cutting machine designed for automatic SPC flooring board cutting and precision plank sizing.
What board size can this machine process?
The machine supports a maximum working width of 1300 mm and a working thickness of 4–20 mm. The roller distance can be adjusted between 292 mm and 482 mm.
What is the working speed of the saw cutting machine?
The listed working speed is 25–35 m/min. Actual speed depends on board thickness, board width, saw blade condition, feeding stability and quality control requirement.
How does the machine reduce edge chipping?
The machine uses saw blade cutting with an anti-bounce compression device, rubber rollers and stable feeding control. These features help reduce board vibration, edge chipping and cutting deviation.
Why is dust control important in SPC board cutting?
SPC board cutting generates fine dust. Internal panel dust cleaning and independent blade dust cleaning help protect saw blade performance, maintain cleaner planks and improve workshop environment.
Can Romeroca supply the saw cutting machine as part of a complete SPC flooring line?
Yes. Romeroca can supply the saw cutting machine individually or as part of a complete SPC flooring production line, including mixing, extrusion, UV coating, cutting, click slotting, V-groove painting, IXPE/EVA lamination, packing, raw materials and spare parts.
What information should I provide before ordering?
Buyers should provide board width, board thickness, target plank width, required cutting speed, dust control requirement, power standard, saw blade requirement and whether the machine will connect with slotting or stacking equipment.
