RFS422
-
Romeroca
-
10-80 M/MIN
-
20KW
-
4400*1900* 2200 MM
Laminate Flooring Wax Coating Machine

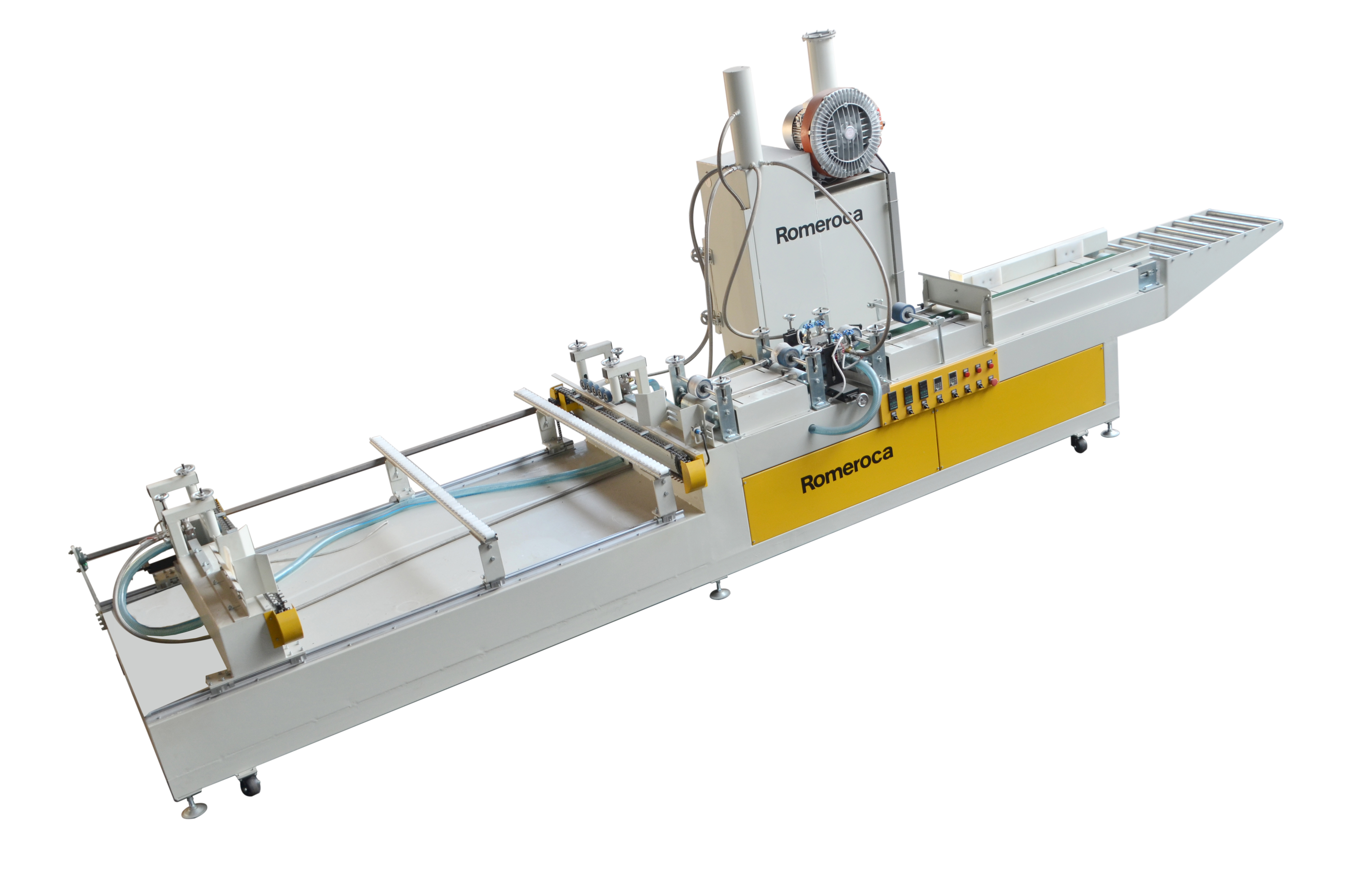

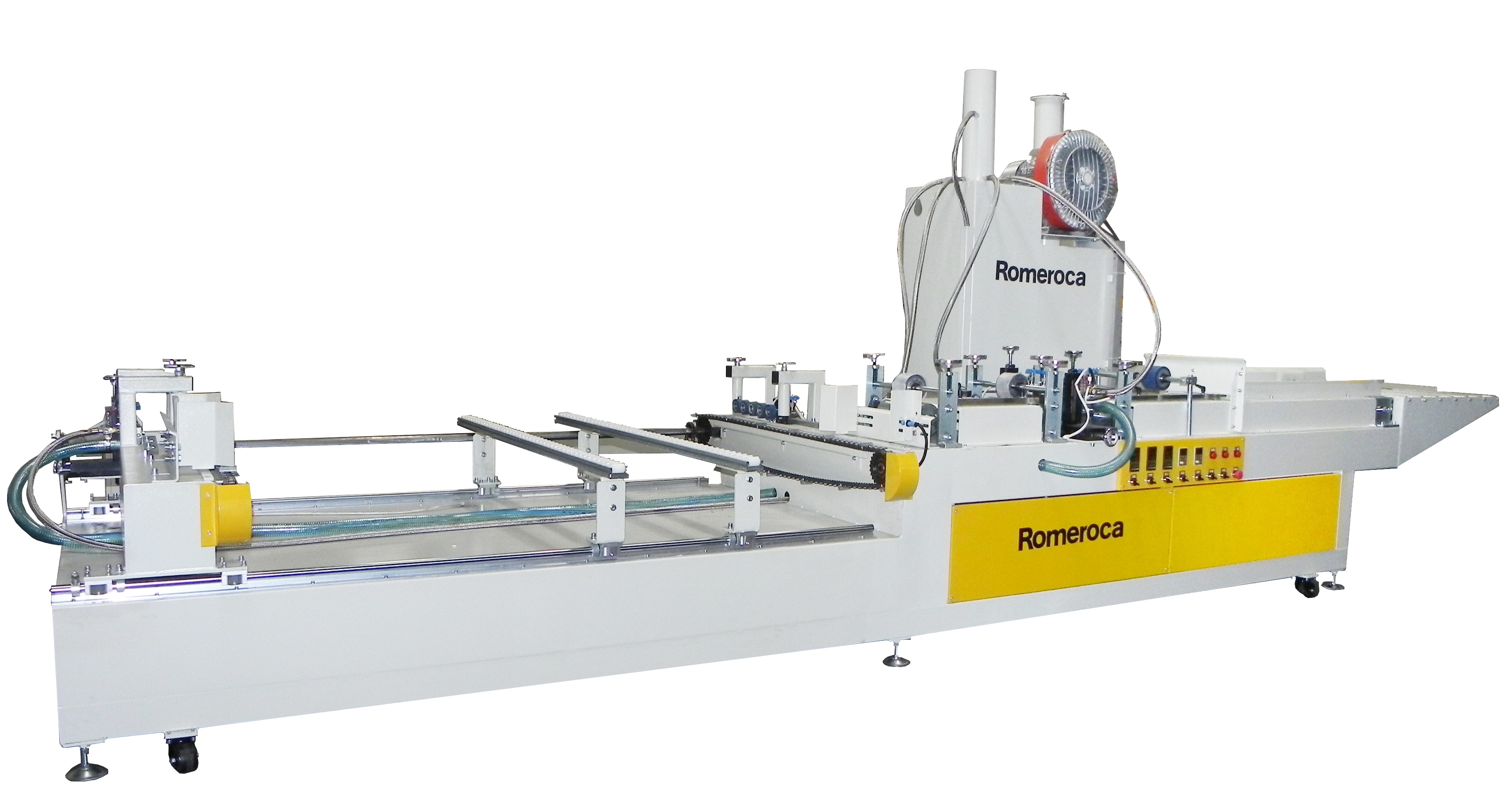

Romeroca Laminate Flooring Wax Coating Machine is designed for paraffin wax sealing and edge protection in laminate flooring production lines. The machine heats paraffin wax into a low-viscosity liquid and applies it to the flooring edges, click grooves and sealing areas, helping improve water resistance, moisture protection, lubrication, anti-aging performance and finished flooring durability.
In a complete laminate flooring production line, the wax coating machine is normally used after hot pressing, cooling, cutting, click slotting, dust collection and optional V-groove painting. It helps protect click profiles, reduce moisture influence around the joints and improve connection performance for laminate flooring, wood flooring and related HDF flooring products.
What Is a Laminate Flooring Wax Coating Machine?
A laminate flooring wax coating machine, also called a laminate floor wax sealing line, applies melted paraffin wax to flooring edges and click grooves. The wax coating helps seal the joint area, improve moisture resistance and provide lubrication during click installation.
For laminate flooring manufacturers, wax sealing is not only a surface treatment step. It is part of the finishing process that affects water resistance around the click profile, edge protection, product feel, odor control and long-term flooring performance in residential and commercial applications.
Wax Coating Machine Specifications
Romeroca supplies different wax coating machine models according to flooring length, width and production layout. The following specification table keeps the original product data and reorganizes it for easier purchasing comparison.
| Parameter | FZZ422Y | FZZ402Y | FZZ622Y | FZZ602Y |
|---|---|---|---|---|
| Working Length | 620–1250 mm | 620–2450 mm | 620–1250 mm | 620–2450 mm |
| Working Width | 100–420 mm | 100–420 mm | 100–620 mm | 100–620 mm |
| Working Thickness | 4–20 mm | 4–20 mm | 4–20 mm | 4–20 mm |
| Voltage | 380V / 50Hz | 380V / 50Hz | 380V / 50Hz | 380V / 50Hz |
| Power | 19.5 kW | 20 kW | 19.5 kW | 20 kW |
| Capacity | 10–80 m/min | 10–80 m/min | 10–80 m/min | 10–80 m/min |
| Size | 4400 × 1900 × 2200 mm | 6900 × 1900 × 2200 mm | 4400 × 2050 × 2200 mm | 6900 × 2050 × 2200 mm |
| Weight | 1200 kg | 1500 kg | 1500 kg | 1800 kg |
Key Features of Romeroca Laminate Flooring Wax Coating Machine
Applies paraffin wax to laminate flooring edges, click profiles and groove areas for moisture-resistant sealing.
Helps improve waterproof performance around flooring joints and supports smoother click connection.
Supports working speeds of 10–80 m/min for industrial laminate flooring production.
Available in multiple models for 420 mm and 620 mm working width requirements.
Compatible with flooring lengths from 620 mm to 2450 mm depending on machine model.
Designed for 4–20 mm laminate flooring and wooden flooring thickness range.
Uses heated wax spraying to form a low-viscosity coating process for cleaner and more efficient application.
Can be integrated with laminate flooring cutting, slotting, V-groove painting, dust collection and packing lines.
How the Laminate Flooring Wax Sealing Process Works
| Process Step | Function | Production Benefit |
|---|---|---|
| Flooring Feeding | Feeds laminate flooring planks into the wax coating machine. | Supports continuous production after slotting or V-groove painting. |
| Paraffin Wax Heating | Heats paraffin wax into a low-viscosity liquid suitable for spraying. | Improves coating flow and wax penetration into groove areas. |
| Edge and Groove Coating | Sprays or applies wax to flooring edges, click profiles and grooves. | Helps improve joint sealing, moisture resistance and installation feel. |
| Cooling and Stabilizing | Allows the applied wax layer to stabilize before packing. | Keeps the coating cleaner and reduces handling defects. |
| Inspection and Packing | Checks wax coverage, click profile cleanliness and final flooring condition. | Improves finished product consistency and reduces customer complaints. |
Why Wax Coating Matters for Laminate Flooring
Laminate flooring is based on an HDF core. Although the surface layer is wear-resistant, moisture can still affect exposed edges and click joints. Wax coating helps protect these areas by sealing grooves, improving resistance to moisture penetration and reducing friction during click installation.
For buyers of laminate flooring production equipment, the wax coating machine should be evaluated together with the double end tenoner, dust collection system, V-groove painting machine and packing line. A stable wax sealing process improves product value, especially for laminate flooring positioned as moisture-resistant or easier-installation flooring.
Certificates and Patents for Wax Coating Technology
For overseas laminate flooring factories, machine documentation, project experience, spare parts support and after-sales service are important when selecting a wax coating machine supplier.
Wax Coating Machine Project Cases for Laminate Flooring

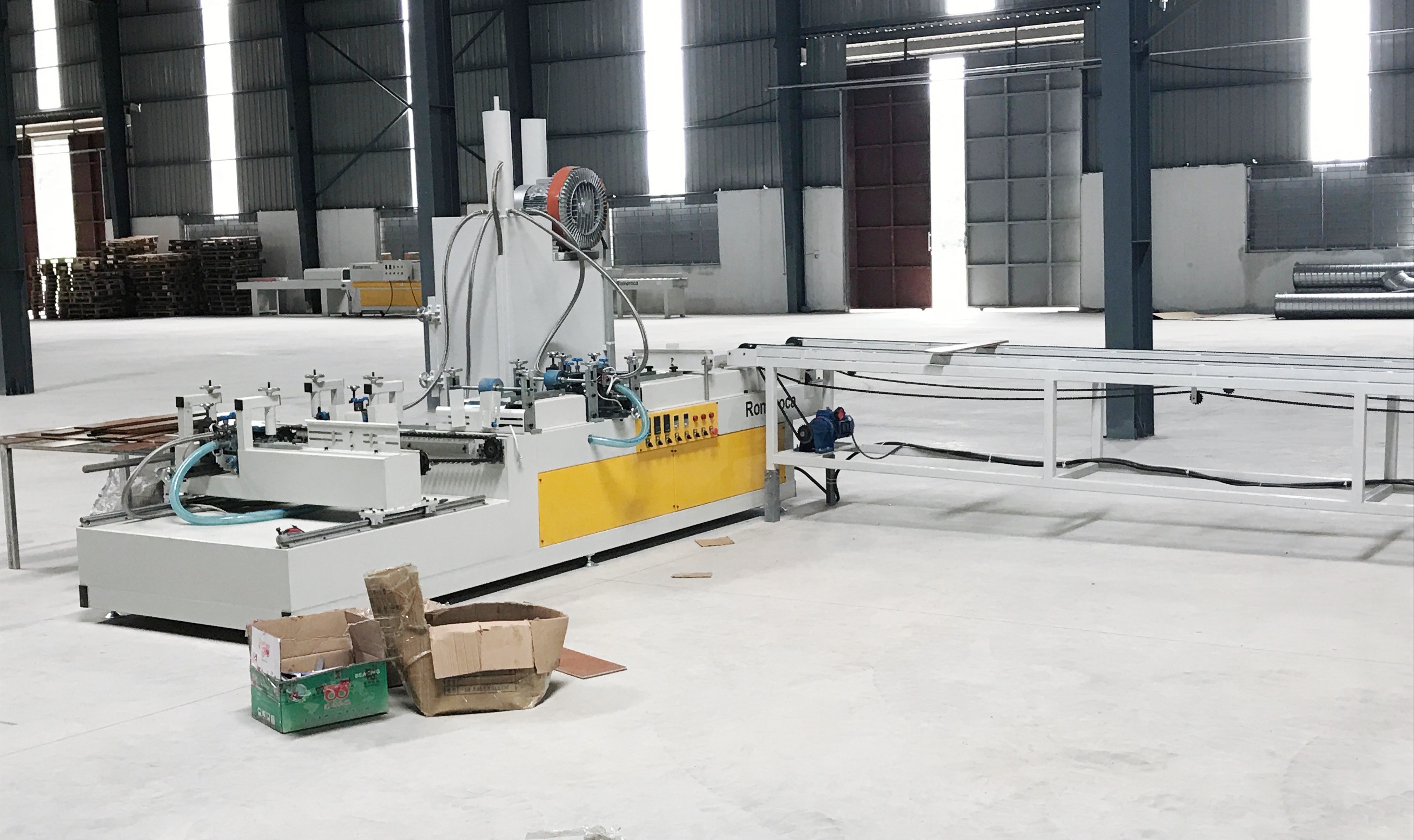

Romeroca supports laminate flooring factory projects with wax coating machine selection, layout planning, installation guidance, commissioning, operation training and spare parts supply. The following images show wax coating machine project installation and production cases.
What Is Laminate Flooring?
Laminate flooring is a multi-layer flooring product made from balance paper, high-density fiberboard, decorative paper and overlay paper. These layers are pressed under high temperature and pressure to form a stable board with a wear-resistant surface and decorative design.
Compared with natural wood flooring, laminate flooring offers lower cost, more design options, strong wear resistance and easier maintenance. After click slotting, wax coating can further improve the edge and joint protection of finished laminate flooring products.
Full Production Process of Laminate Flooring with Wax Coating
A complete laminate flooring production line normally includes boiler or thermal oil heating, hot pressing, cooling, cutting, click slotting, dust collection, optional V-groove painting, wax coating and packing. Wax coating is an important finishing step for edge and groove protection before final packing.
1. Boiler and Thermal Oil Heating
The boiler or thermal oil system supplies heat to the hot press machine. Fuel options can include coal, natural gas, diesel or electricity depending on local energy conditions.
2. Hot Pressing
The hot press machine presses overlay paper, decorative paper and balance paper onto HDF boards. Stainless steel chroming plates transfer surface texture and create the required laminate flooring appearance.
3. Cooling Platform
The cooling platform cools hot pressed boards after high-temperature pressing, helping stabilize dimensions and maintain tight layer adhesion.
4. Cutting
Automatic cutting equipment cuts large laminate boards into planks according to the required flooring size and production plan.
5. Click Slotting
Longitudinal and transverse double end tenoners process plank edges into the required click profiles using suitable tooling and PCD cutters.
6. Dust Collection
The dust collection system removes dust generated during cutting and slotting, helping protect product cleanliness, equipment performance and workshop environment.
7. V-Groove Painting
Optional V-groove painting applies color to the plank edges, enhancing the natural wood-like visual effect and improving the finished flooring grade.
8. Wax Coating
The wax coating machine applies paraffin wax to flooring edges and click grooves, helping improve waterproofing, moisture resistance, anti-aging performance and lubrication.
9. Packing
Finished planks can be inspected, counted and packed by semi-automatic or fully automatic packing machines according to the factory automation requirement.
What Romeroca Offers for Laminate Flooring Projects
Complete Laminate Flooring Production Line
Romeroca can provide hot press machine, cooling line, cutting machine, click slotting machine, dust collection machine, V-groove painting machine, wax coating machine and packing machine for laminate flooring production.
Raw Materials for Laminate Flooring
Romeroca can support overlay paper, decorative paper, balance paper and melamine paper after impregnation. Bundled material purchasing can help flooring factories reduce procurement coordination and shipping cost.
Spare Parts for Laminate Flooring Manufacturing
Available spare parts include PCD cutters, PCD saw blades, cushion pads, stainless steel chroming plates, wax coating components, nozzles, heating parts and other accessories required for laminate flooring production.
Testing Equipment and Quality Control Support
Romeroca can help flooring factories prepare wear testers, click strength testers, click projectors and related testing equipment for laminate flooring quality control.
Why Choose Romeroca as Your Wax Coating Machine Supplier?
Romeroca is a professional sales and technology service company dedicated to the flooring industry. Headquartered in Changzhou, Jiangsu, China, Romeroca supports overseas flooring factories with production lines, flooring raw materials, spare parts and technical services.
15 years of flooring industry experience.
Headquarter in Changzhou, Jiangsu, China, with branches in Hong Kong and Vietnam.
Laminate flooring and PVC flooring products exported to customers in 82 countries.
One-stop support since 2015 for overseas flooring factories, including production line, raw materials and technical services.
Support for product consultancy, inspection, new product development and strategic purchasing analysis.
36 months of after-sales service and strategy support for partner factories.
After-Sales Support for Wax Coating Systems
12-month warranty on Romeroca machines, excluding standard wear parts.
36-month tracking service and prompt response within 24 hours.
Factory production process planning and machine layout design.
Technical guidance, operation training and production support.
Timely spare parts supply for heating parts, wax coating components and other wear parts.
Integrated support from raw materials and machines to finished laminate flooring products.
Frequently Asked Questions About Laminate Flooring Wax Coating Machines
What is a laminate flooring wax coating machine?
A laminate flooring wax coating machine heats paraffin wax into liquid form and applies it to flooring edges, click profiles and groove areas. It helps improve moisture resistance, waterproofing around joints and click installation lubrication.
What is the difference between wax coating and wax sealing?
In laminate flooring production, wax coating and wax sealing usually refer to the same finishing process. The machine applies paraffin wax to the edge or groove area to create a protective sealing layer.
What flooring materials can Romeroca wax coating machine process?
The machine is mainly used for laminate flooring and wooden flooring. It is suitable for flooring products that require paraffin wax edge sealing, click groove protection or moisture-resistant finishing.
What flooring sizes can this machine handle?
Depending on the model, the machine supports working lengths from 620 mm to 2450 mm, working widths from 100 mm to 620 mm and working thicknesses from 4 mm to 20 mm.
What is the working speed of the wax coating machine?
The listed capacity is 10–80 m/min. The actual working speed depends on flooring size, wax type, coating amount, groove structure and production quality requirement.
Why is paraffin wax used for laminate flooring?
Paraffin wax can be heated into a low-viscosity liquid for coating. In laminate flooring, it is used for edge sealing, moisture protection, lubrication and anti-aging support around the click joint and groove area.
Can Romeroca supply this wax coating machine as part of a complete laminate flooring line?
Yes. Romeroca can supply the wax coating machine individually or as part of a complete laminate flooring production line, including hot press, cooling line, cutting machine, click slotting machine, dust collection system, V-groove painting machine, packing machine, raw materials and spare parts.
What information should I provide before ordering?
Buyers should provide flooring length, width, thickness, target production speed, coating position, wax type, power standard, line layout and whether the machine will connect with V-groove painting or packing equipment.
