Laminate Flooring Production Line Hot Press Machine

Availability:
Quantity:



LAMINATE FLOORING PRODUCTION LINE



HOT PRESS MACHINE



Romeroca Short-cycle hot press machine



Romeroca extrusion machine is the most important process of SPC flooring producing. The extruder converts the mixed raw materials into the SPC core layer by the double-cone screw and T-die, and laminating the wear-resistant layer and decor film on the core layer with four-roller or five-roller calendering, and finally form the SPC flooring big board.  Romeroca SPC flooring extruder, manufacturered from the China biggest extruder machine factory, is Top 1 selling in Vietnam and China, also very popular in global market.





PRODUCT INFORMATION





压机


Specifications of some main models:


serial number

Spec

Details

1

Pressure

20000kN

2

Laminated way

Double size

3

Loading direction

Horizontal

4

Power

~40kW

5

Size

2600×1400×160mm

Upper hot platen

2600×1400×120mm

Down hot platen

6

Day light opening

250mm

7

Main oil cylinder (Diameter X Stroke)

Φ360×250mm

8

Lifting cylinder (Diameter X Stroke)

Φ80×250mm

9

System working oil pressure

≤25Mpa

10

Hot platen temperature

≤210℃

11

Heating medium

Hot oil

12

Loading speed

10~120m/min(Speed is adjustable)




Features of Romeroca Laminate Flooring Extrusion Line:



-- Patent design, over 10 years' extrusion and lamination production experience.
-- Energy saving, high efficient and stable.
-- Easy replacement of embossing roller.
-- Easy operation and maintenance and QC checking.
-- Better plasticization and more peel strength, because of our patent lamination system.
-- No waste during change overlay and decor film.
-- Good performance on shrinkage and bending after extrusion.
-- Make sure good performance and be even on embossing depth.
-- Make special design for SPC flooring production and offer turn-key project.

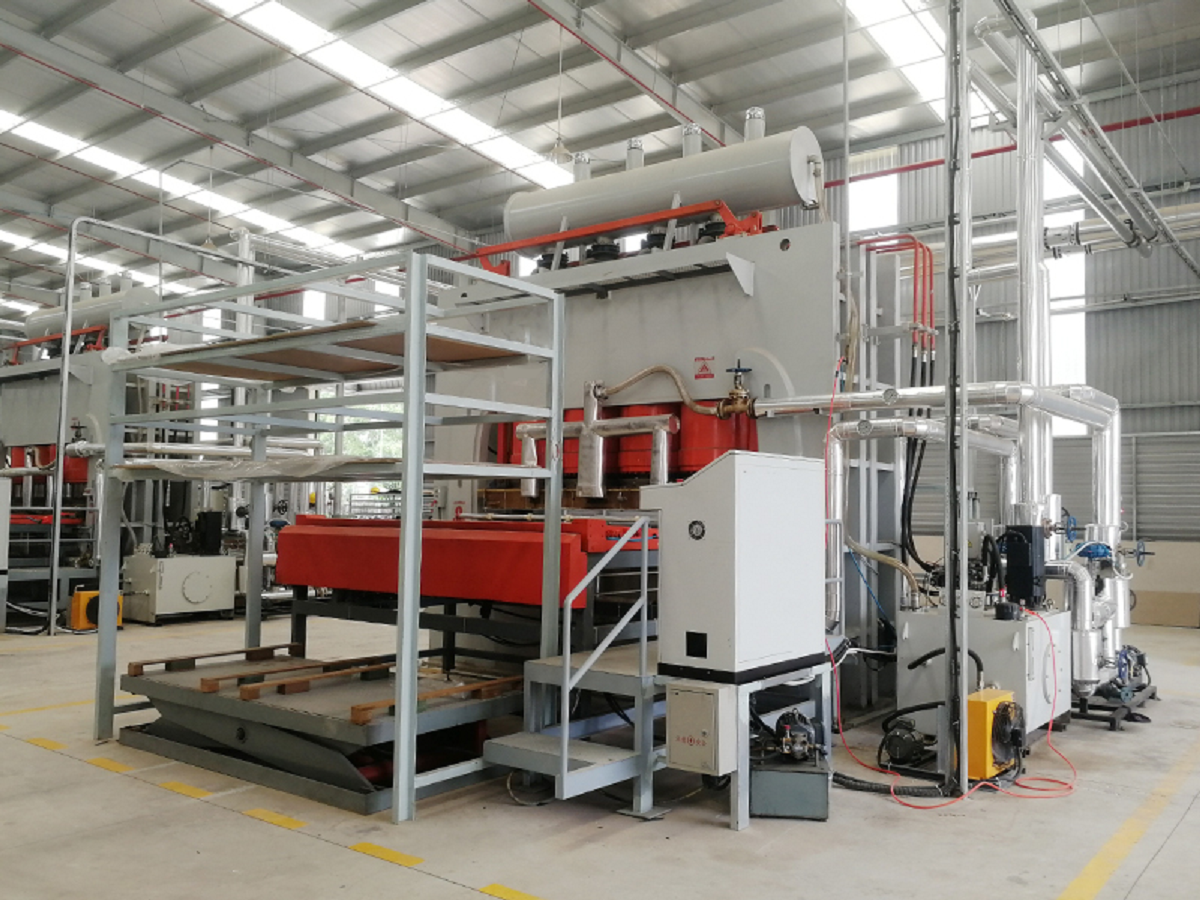

9.4 Laminate flooring hot press machine






OUR ELECTRICAL PARTNERS



brand name



CERTIFICATES AND PATENTS



Certificate



OVERSEAS PROJECT CASES

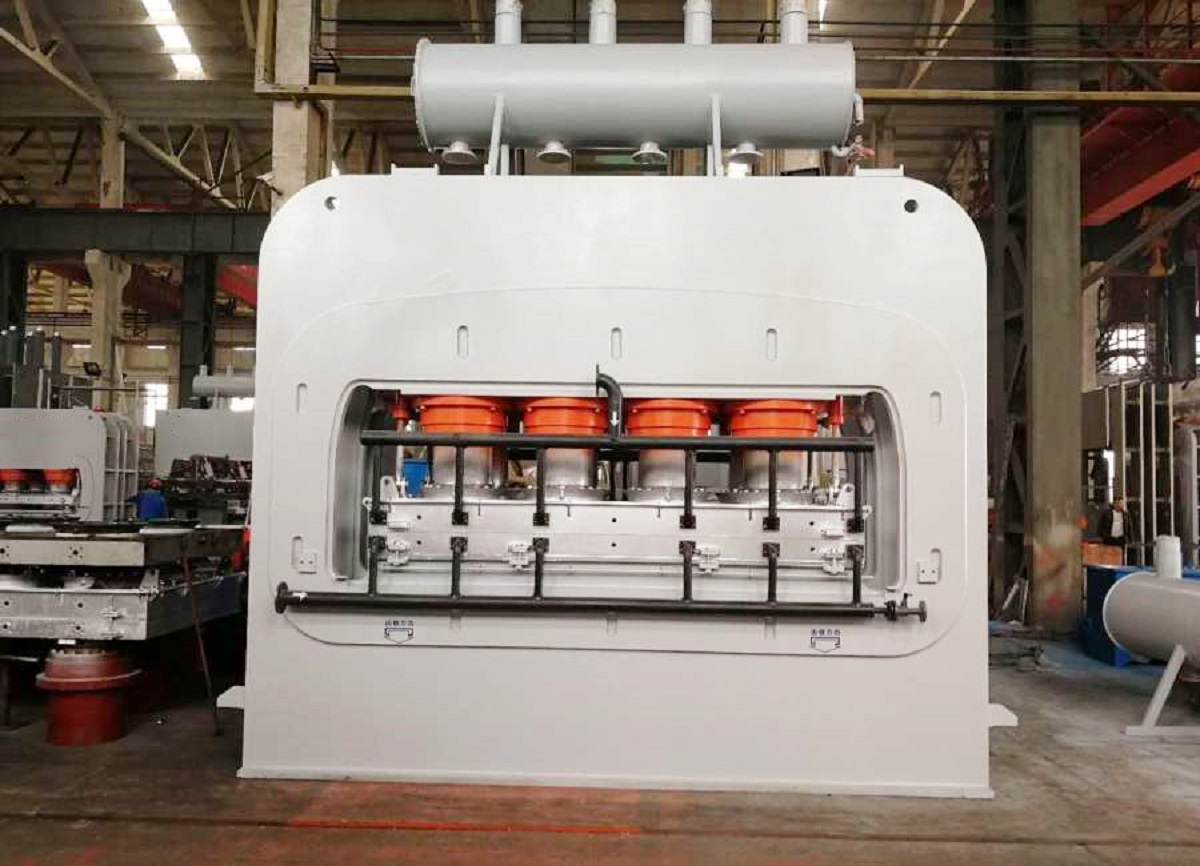

9.2 Romeroca hot press for laminate flooring




What is Laminate flooring?


Laminate flooring is composed by 4 materials : balance paper,hardwood HDF,decorative paper and overlay paper. It's made by crushing the logs, adding preservatives and additives, and pressing them with high temperature and high pressure by a hot press. Therefore, it breaks the physical structure of the logs and overcomes the weakness of poor log stability.It is installed with click system, which is very convenient for installation or removal. Laminate flooring is affordable, with many designs and colors, good wear resistance, easy care and convenient installation.


图片1_副本 - 副本


Full production processes of Laminate flooring


1. Boiler

Boiler supply heat to hot press machine by thermal oil.

Fuels for boiler are coal, natural gas, diesel, electricity.


2. Hot Pressing

Main size of hot press machine is 4'x8 ft, Press is 2800T.

We press the exquisite patterns on HDF board by stainless steel chroming plate.


3. Cooling Platform

When temperature of hot press machine reach 200℃, can ensure decorative paper and overlay paper sticking onto HDF board tightly, so cooling platform is needed to cool down the flooring quickly and increase stability of flooring sizes.


4. Cutting

Use automatic multiple ripsaw to cut the big laminate board into the small planks of the required size.


5. Slotting

Through the longitudinal and transverse double-end tenoner slotting machine, four sides edges of the  plank after cutting are processed into certain lock shape. The important thing is that need to choose the suitable click system and the perfect Polycrystalline diamond (PCD) click profiling cutters.


6.Dust Collection

During Cutting and slotting,will be heavy dust. Dust collection system can collect the dust and offering a cleaner floooring and work environment.


7.V-Groove Painting

In global market some customers prefer to the edges of Laminate flooring to be V-groove and painted.  They think this kind of flooring looks nicer.


8. Wax Coating

Wax Coating machine is mainly used for wooden flooring by the paraffin wax. Through heating to form a low viscosity of liquid spray on the flooring.Because paraffin wax is white and non-toxic, it is very widely used. After processing, the products have the functions of preventing formaldehyde dissociation, preventing odor emanating, waterproof and moisture-proof, anti-aging, preventing moisture volatilization and lubrication.


9. Packing

Choose packing machine with different degrees of automation according to your needs, and there are fully automatic and semi-automatic machines can be optional.

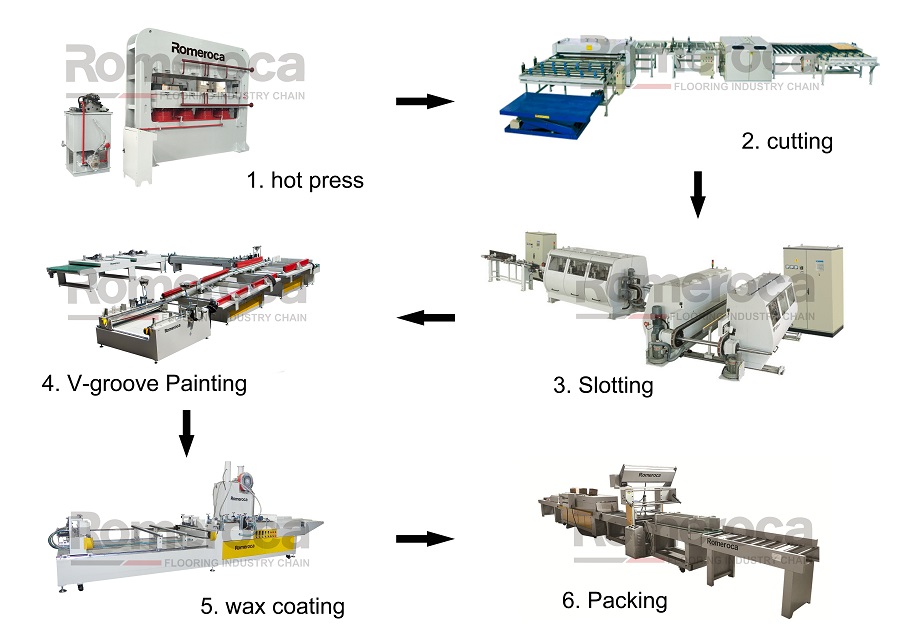

Machine flow chart

Who we are ?


Romeroca is a professional flooring innovation and technical sevice company,

with 16 years experience in flooring industry, and over 10 years in Asian market.

We provide one-stop supply and services for overseas flooring factories,

including flooring production line, flooring raw materials, and technical services.




What we are offering about Laminate flooring project?


1.Laminate flooring full production line:

Laminate flooring Hot Press machine, Cooling line, Cutting machine,

Click slotting machine, Dust Collection machine, V-groove painting machine,

Wax coating machine, Packing machine.



2.Raw materials for producing Laminate flooring:

Overlay/Wear Layer Paper, Decorative Paper,Balance Paper.

Melamine paper ( after Impregnation) for all above.

To save shipping cost for our partners, Romeroca can mix different raw materials to ship together.



3.Spare parts for Laminate flooring manufacturing line:

PCD cutters, PCD saw blades, Cushion Pad ( Silicon& Cooper)Chroming Plate.

Romeroca can supply all kinds of accessories for all machines of laminate flooring production.



4.Test equipments for Laminate flooring factory:

Romeroca can supply all kinds of test equipments that laminate flooring manufacturing factory needs.

For example: Wear tester, Click Strengthen tester, Click Projector, and so on.





OUR SERVICES & AFTER SALES


1) 12-months warranty on all Romeroca machine (excluding wear parts).

2) 36-months tracking service, prompt response within 24 hours.

3) Providing factory production process and machine layout design.

4) Providing technical guidance, training and support.

5) Providing timely supply support for spare parts.

6) Other support from raw materials, machines to finished products.
